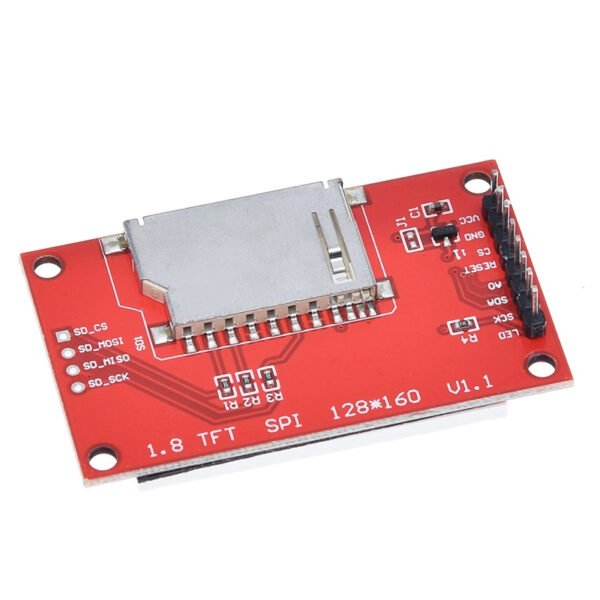

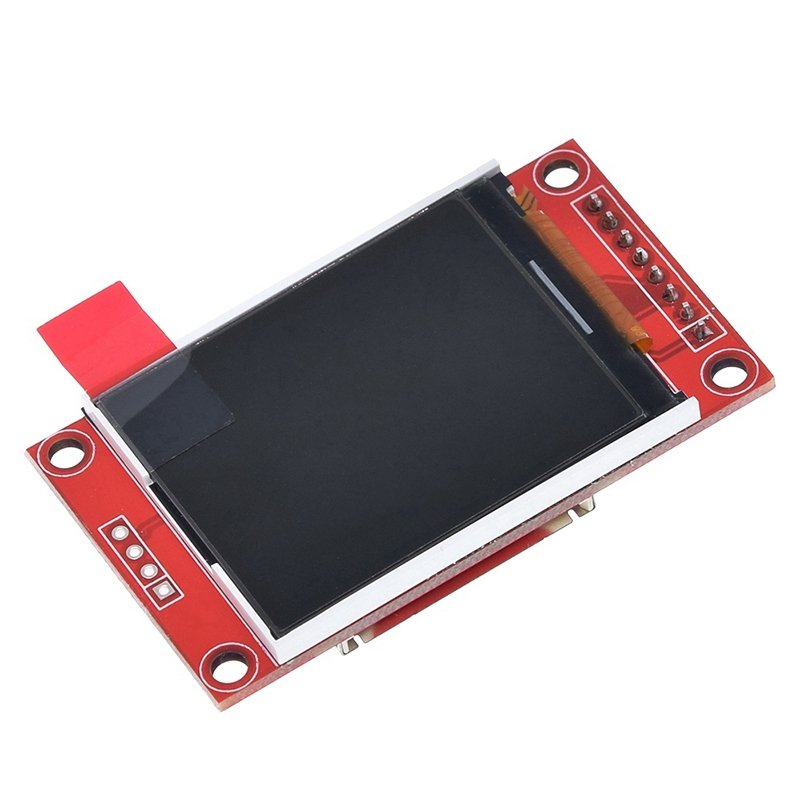

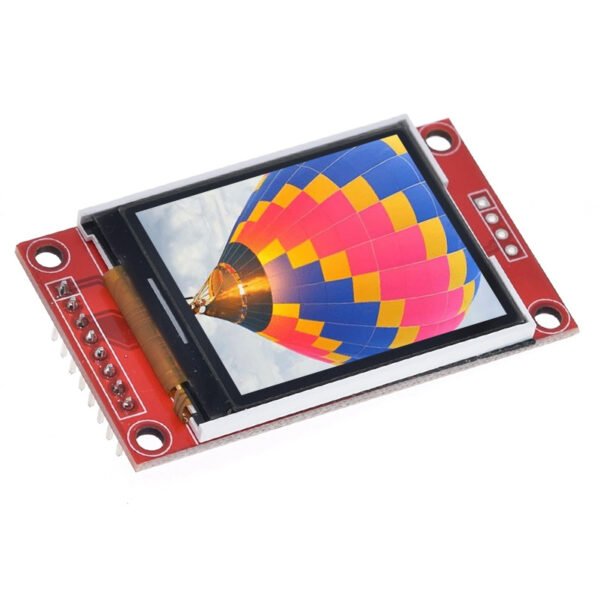

1.8 inch TFT LCD Display – 128×160 SPI Screen for Arduino & MCU

Introduction: Why Choose This Display?

This high-quality 1.8 inch TFT LCD module solves the challenge of adding a crisp color display to your electronics projects without consuming valuable I/O pins. With its efficient SPI interface and only 4 control wires, it’s ideal for resource-constrained microcontrollers like Arduino Uno, STM32, and 51-series MCUs.

Key Applications

• Arduino Projects: Create interactive menus, data dashboards
• Embedded Systems: Status displays for IoT devices
• DIY Electronics: Portable gaming consoles, mini oscilloscopes
• Industrial Controls: Equipment status monitoring

Technical Specifications

1. Display Type: TFT LCD
2. Size: 1.8 inch (diagonal)
3. Resolution: 128 x 160 pixels
4. Interface: SPI (4-wire serial)
5. Driver IC: ST7735S (or equivalent)
6. Color Depth: 262K colors
7. Viewing Angle: 140°
8. Backlight: LED (3.3V-5V compatible)
9. Operating Voltage: 3.3V-5V
10. Current Consumption: ~25mA (typical)
11. Mounting: 4-corner mounting holes
12. Temperature Range: -20°C to +70°C
13. Library Support: Arduino, STM32, 51 MCU
