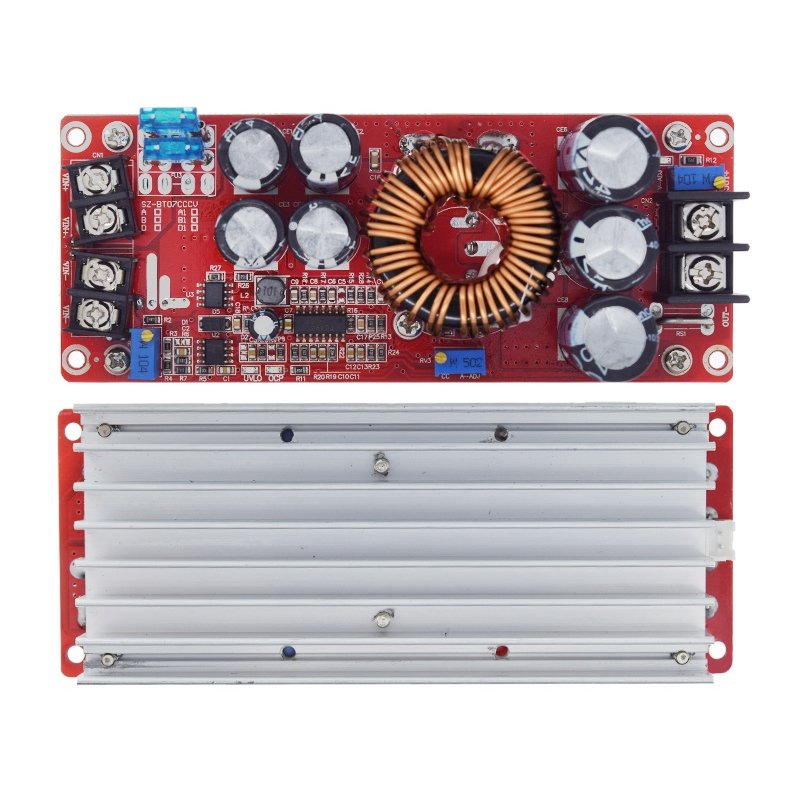

1200W 20A Boost Converter – Step-Up Power Module

The 1200W 20A DC-DC Boost Converter Step-Up Power Supply Module is a high-performance power conversion solution designed for demanding applications. With an input voltage range of 8-60V and an adjustable output voltage of 12-83V, this module is perfect for boosting low-voltage power sources to higher voltages. Whether you’re working on solar power systems, electric vehicles, LED lighting, or industrial equipment, this boost converter delivers reliable and efficient power conversion.

Benefits and Practical Applications:

• High Power Output: Supports up to 1200W of power with a maximum current of 20A.
• Wide Input Voltage Range: Works with input voltages from 8V to 60V, making it versatile for various power sources.
• Adjustable Output Voltage: Output can be adjusted from 12V to 83V to suit your specific needs.
• Efficient and Reliable: Built with high-quality components for stable and efficient performance.
• Applications: Ideal for solar power systems, electric vehicles, battery charging, LED lighting, and industrial equipment.

Detailed Technical Specifications:

1. Input Voltage: 8-60V DC
2. Output Voltage: 12-83V DC (adjustable)
3. Maximum Output Current: 20A
4. Maximum Output Power: 1200W
5. Conversion Efficiency: Up to 95%
6. Operating Temperature: -40°C to +85°C

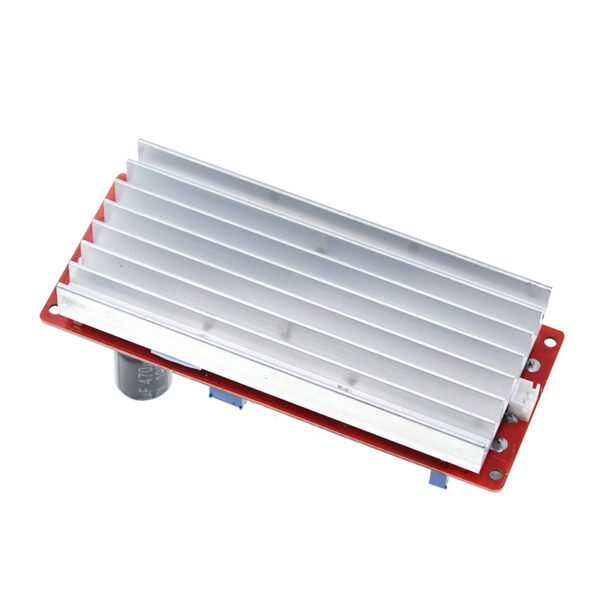

7. Cooling: Built-in cooling fan for heat dissipation
8. Protections: Over-current, over-temperature, and short-circuit protection
9. Adjustability: Output voltage adjustable via potentiometer
10. Compatibility: Suitable for solar panels, batteries, and other DC power sources

FAQ:

1. What is the maximum input voltage for this boost converter?

The maximum input voltage is 60V DC. Ensure your power source does not exceed this limit to avoid damage.

2. Can I adjust the output voltage?

Yes, the output voltage can be adjusted from 12V to 83V using the built-in potentiometer.

3. Is this module suitable for solar power systems?

Absolutely! This boost converter is ideal for solar power systems, as it can efficiently step up the voltage from solar panels to charge batteries or power devices.

4. Does this module have built-in protections?

Yes, it includes over-current, over-temperature, and short-circuit protections to ensure safe and reliable operation.

5. How do I cool the module during high-power operation?

The module comes with a built-in cooling fan to dissipate heat. Ensure proper ventilation for optimal performance.
