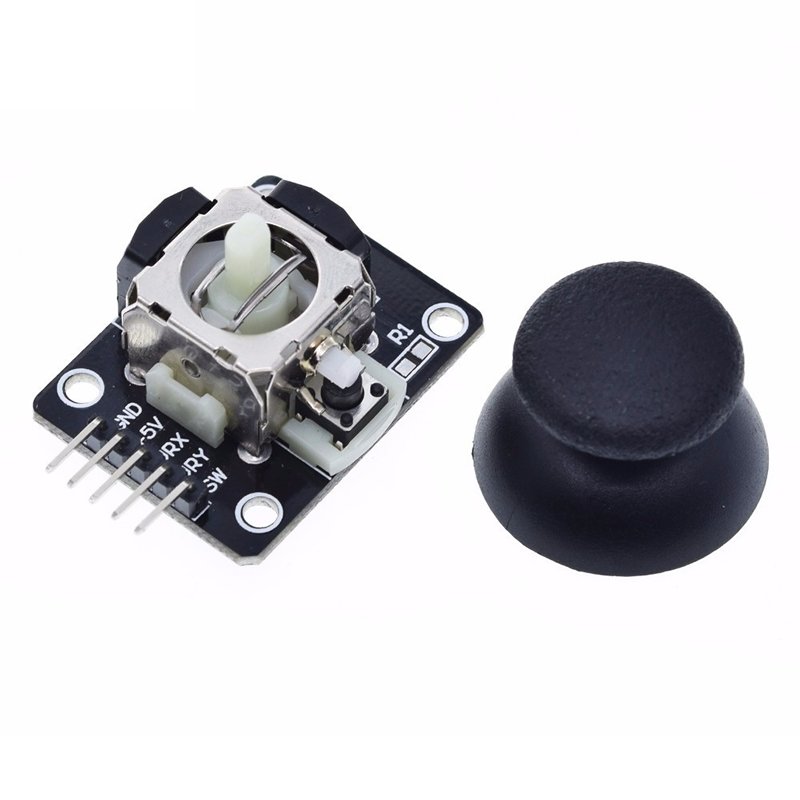

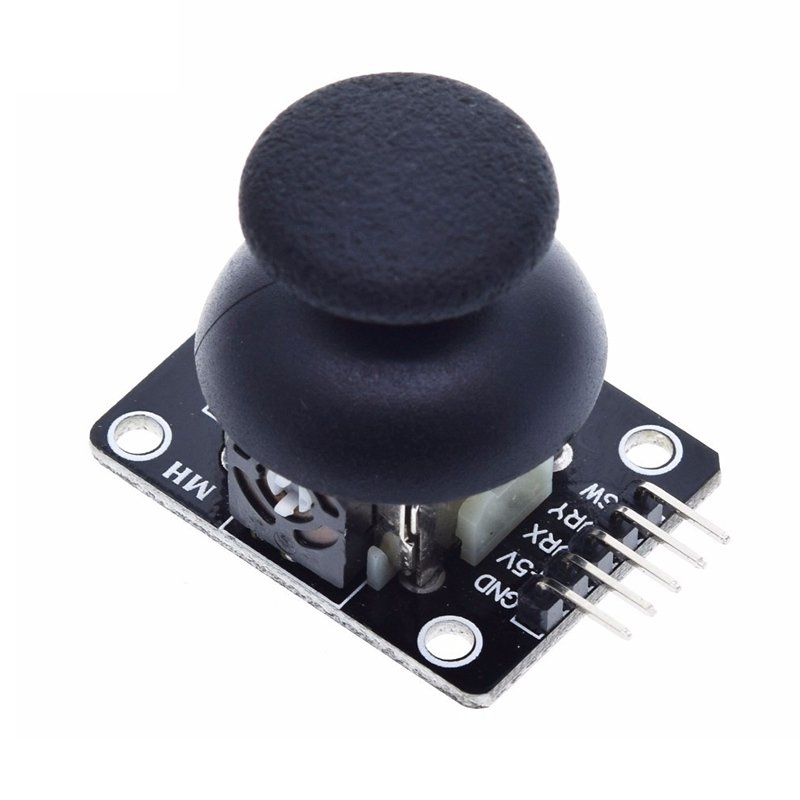

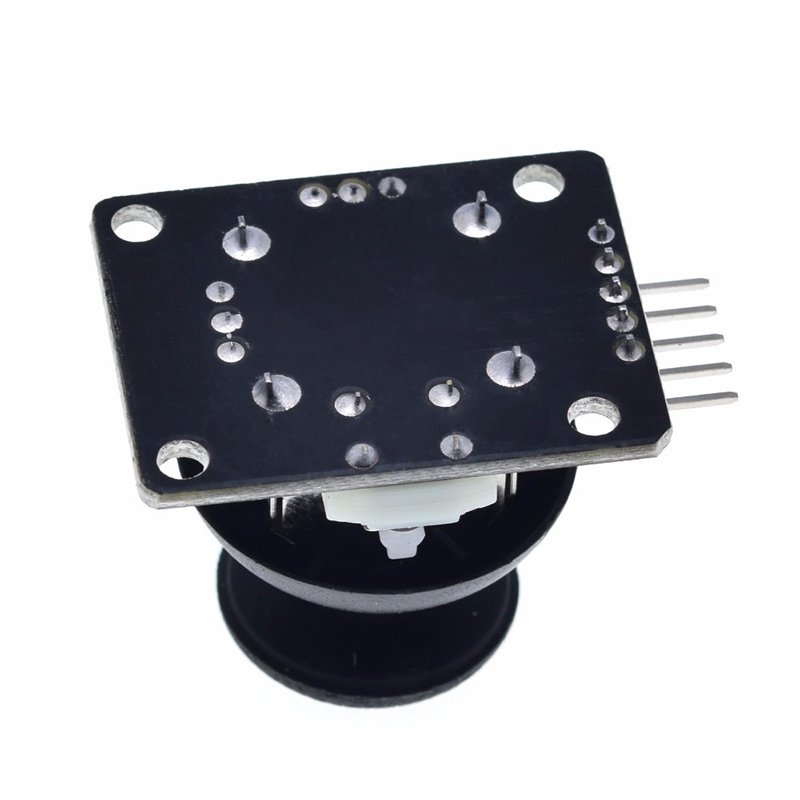

KY-023 Dual-axis PS2 Joystick Sensor

Introduction: Why Choose the KY-023 Dual-axis PS2 Joystick Sensor?

When it comes to controlling electronic devices or creating interactive systems, precision and reliability are key. The KY-023 Dual-axis PS2 Joystick Sensor offers smooth, responsive control with its dual-axis design and integrated push button. Whether you’re building a robot, designing a custom game controller, or developing an IoT interface, this joystick sensor provides the flexibility and accuracy you need. Its compatibility with popular platforms like Arduino and Raspberry Pi makes it a go-to choice for hobbyists and professionals alike.

Detailed Technical Specifications

1. Joystick Type : Dual-axis (X and Y) + push button.
2. Output Type : Analog signals for X and Y axes, digital signal for the push button.
3. Operating Voltage : 3.3V to 5V.
4. Axes Range : Full 360° movement on both X and Y axes.
5. Push Button : Integrated tactile switch for additional input functionality.
6. Compatibility : Arduino Uno, Mega, Nano, ESP32, ESP8266, Raspberry Pi, and other microcontrollers.
7. Connector Type : Standard pin headers for easy breadboard integration.
8. Dimensions : 40mm x 25mm x 30mm (compact and lightweight design).
9. Weight : 20 grams (portable and easy to integrate).
10. Material : Durable plastic housing with a metal spring for smooth movement.
11. Signal Noise : Low noise for stable and accurate readings.

Advantages and Practical Applications

The KY-023 Dual-axis PS2 Joystick Sensor is highly versatile and can be used in a wide range of applications:

• Robotics : Control robot movements with precision using the X and Y axes.
• Gaming Controllers : Build custom game controllers for Arduino-based gaming projects.
• Navigation Systems : Implement zoom, pan, or directional controls in graphical interfaces.
• IoT Projects : Create interactive user interfaces for smart home devices or IoT applications.
• Educational Kits : Ideal for teaching electronics and programming concepts to students.

Its plug-and-play design and compatibility with popular development boards make it an excellent choice for both beginners and advanced users

FAQ (Frequently Asked Questions)

Question 1: Is the KY-023 Dual-axis Joystick compatible with Arduino Uno?

Answer : Yes, the KY-023 Dual-axis Joystick is fully compatible with Arduino Uno. Simply connect the VCC, GND, X, Y, and SW (push button) pins to your Arduino board to start using the module.

Question 2: Can I use this joystick with Raspberry Pi?

Answer : Absolutely! While the Raspberry Pi lacks native analog inputs, you can use an external ADC (Analog-to-Digital Converter) like the MCP3008 to read the analog signals from the KY-023 Joystick.

Question 3: How long does the joystick last under heavy use?

Answer : The KY-023 Joystick is designed with a durable metal spring and high-quality components, allowing it to withstand thousands of cycles. However, avoid excessive force to ensure maximum longevity.

Question 4: Does the module come with example code?

Answer : Yes, we provide sample code for Arduino and Raspberry Pi to help you get started quickly. You’ll also find tutorials and guides on our website for additional support.

Question 5: Can I power the KY-023 Joystick directly from my microcontroller?

Answer : Yes, the KY-023 Joystick operates at 3.3V to 5V and can be powered directly from the 5V or 3.3V pins of your microcontroller, eliminating the need for external power sources.
