KY-040 Rotary Encoder Module – 360 Degrees for Arduino and DIY Projects

Introduction : What is the KY-040 Rotary Encoder?

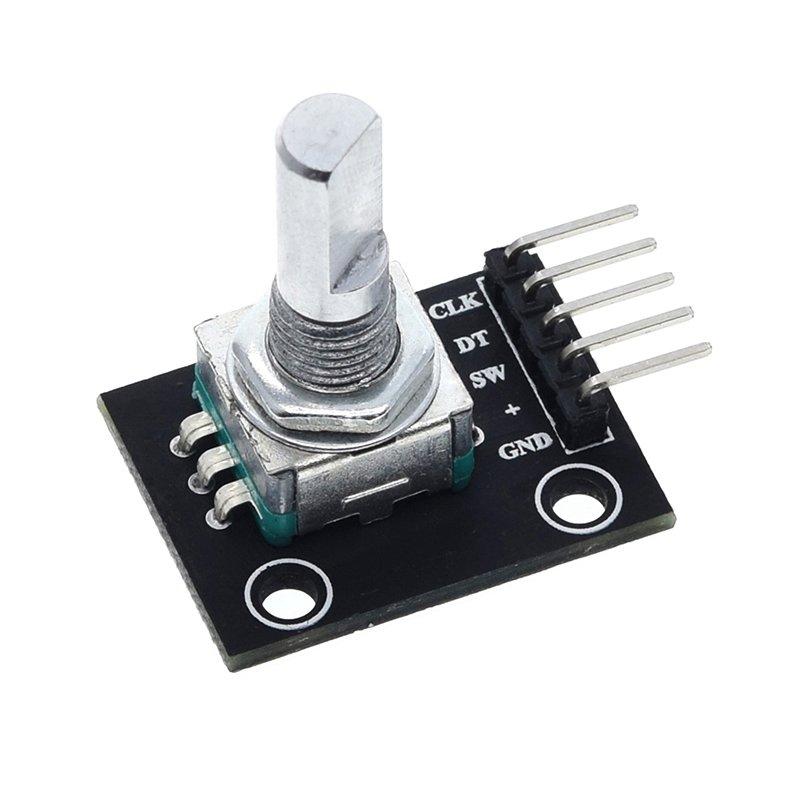

KY-040 Rotary Encoder Module is an accurate sensor that is used in detecting rotational motion and direction. Rotary encoders, unlike regular potentiometers, have no limit of rotation, thus making them ideal for menu selection, robot control, and industrial control.
This module is used extensively in Arduino, Raspberry Pi, ESP32, and other microcontrollers, with no mechanical wear for accurate position tracking. The KY-040, featuring 360 degrees continuous rotation, is a must-have for interactive electronics projects.

Benefits and Practical Applications:

• 360-Degree Rotation: Allows unlimited rotation in both clockwise and counterclockwise directions.
• High Precision: Detects small rotational changes with high accuracy.
• Easy Integration: Simple wiring and compatibility with Arduino, ESP8266, ESP32, and other microcontrollers.
• Versatile Applications: Perfect for volume knobs, motor control, robotics, and interactive projects.

Comparison with Similar Products:

Unlike other rotary encoders, the KY-040 is unique in being low-priced, easy to operate, and Arduino-friendly. It does not have the onboard push-button functionality of higher-end encoders but is nonetheless widely utilized for general rotation detection applications.

Detailed Technical Specifications:

• Rotation: 360 degrees (continuous)
• Output Type: Digital (2-bit Gray code)
• Operating Voltage: 5V
• Interface: 3 pins (CLK, DT, SW)
• Dimensions: 30 mm x 18 mm (module size)
• Compatibility: Arduino, ESP8266, ESP32, Raspberry Pi (with additional circuitry)
• Resolution: 20 pulses per rotation (varies by model)
• Push Button: Included for additional input functionality
• Mounting: Standard breadboard-friendly design

FAQ:

1. What is a rotary encoder used for?

A rotary encoder is used to detect rotational movement and direction, making it ideal for applications like volume control, position tracking, and menu navigation.

2. Is the KY-040 compatible with Raspberry Pi?

Yes, the KY-040 can be used with Raspberry Pi, but additional circuitry (e.g., pull-up resistors) may be required for proper signal interpretation.

3. How do I connect the KY-040 to an Arduino?

The KY-040 has three main pins: CLK (clock), DT (data), and SW (switch). Connect CLK and DT to digital pins on the Arduino, and SW to another digital pin if using the push-button feature.

4. Can I use the KY-040 for motor control?

Yes, the KY-040 can be used to monitor motor rotation and provide feedback for precise motor control in robotics and automation projects.

5. Does the KY-040 have a push-button function?

Yes, the KY-040 includes a built-in push button that can be used as an additional input, such as a selection button in menu navigation.
